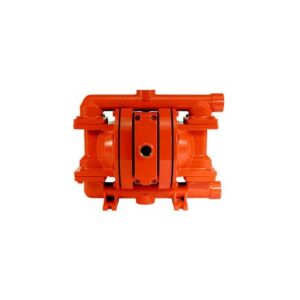

Wilden 02-11941

Advanced Series pumps designed for maximum performance and efficiency. The bolted configuration of these pumps ensures total product containment while the redesigned liquid path reduces internal friction to maximize output and efficiency.

Specifications :

PX200/WWAAA/BNS/BN/MBN/0697
Model : PRO-FLOX
Wetted Parts & Outer Piston : Ductile Iron / Ductile Iron
Center Section : Aluminium
Air Valve : Aluminum
Diaphragms : BUNA-N (Red Dot)
Valve Ball : BUNA-N (Red Dot)
Valve Seat : Mild Steel
Valve Seat & Manifold O-Ring : BUNA-N
Speciality Code : 19mm (3/4″) NPT center-ported discharge manifold (Pro-Flo “Drop-in”)

General Features :

Flow Rate : 212 LPM (56 GPM)
Maximum Pressure : 8.6 BAR (125 PSIG)
Maximum Suction Lift Capability : 5.5 m (18.2′) Dry
Maximum Diameter Solids : 6.4 mm (1/4″)

Elastomer Options :

Material Temperature Limits :
Buna-N : -12.2 (+10) to +65.6 (+150) C (F)
Neoprene : -17.8 (+0) to +93.3 (+200) C (F)
EPDM : -51.1 (-60) to +137.8 (+280) C (F)
Polyurethane : -12.2 (+10) to +65.6 (+150) C (F)
Saniflex : -28.9 (+20) to +104.4 (+220) C (F)
PTFE : +4.4 (+40) to +104.4 (+220) C (F)
Viton : -40 (-40) to +176.7 (+350) C (F)
Wil-Flex : -40 (-40) to +107.2 (+225) C (F)
