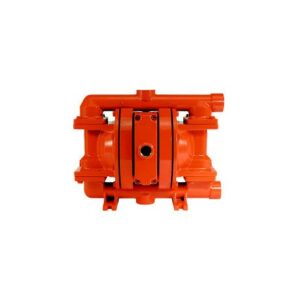

Wilden 02-11929

Advanced Series pumps designed for maximum performance and efficiency. The bolted configuration of these pumps ensures total product containment while the redesigned liquid path reduces internal friction to maximize output and efficiency.

Specifications :

PX200/SSAAA/TNU/TF/STF/0320
Model : PRO-FLOX
Wetted Parts & Outer Piston : Stainless Steel / Stainless Steel
Center Section : Aluminium
Air Valve : Aluminum
Diaphragms : PTFE w/SANIFLEX Back-Up
Valve Ball : PTFE (White)
Valve Seat : Stainless Steel
Valve Seat & Manifold O-Ring : PTFE (White)
Speciality Code : Single-point Exhaust

General Features :

Flow Rate : 212 LPM (56 GPM)
Maximum Pressure : 8.6 BAR (125 PSIG)
Maximum Suction Lift Capability : 5.5 m (18.2′) Dry
Maximum Diameter Solids : 6.4 mm (1/4″)

Elastomer Options :

Material Temperature Limits :
Buna-N : -12.2 (+10) to +65.6 (+150) C (F)
Neoprene : -17.8 (+0) to +93.3 (+200) C (F)
EPDM : -51.1 (-60) to +137.8 (+280) C (F)
Polyurethane : -12.2 (+10) to +65.6 (+150) C (F)
Saniflex : -28.9 (+20) to +104.4 (+220) C (F)
PTFE : +4.4 (+40) to +104.4 (+220) C (F)
Viton : -40 (-40) to +176.7 (+350) C (F)
Wil-Flex : -40 (-40) to +107.2 (+225) C (F)
