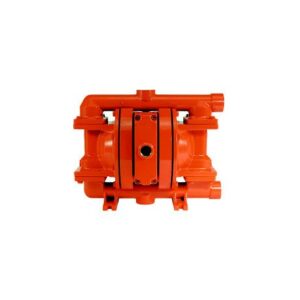

Wilden 02-11862

Advanced Series pumps designed for maximum performance and efficiency. The bolted configuration of these pumps ensures total product containment while the redesigned liquid path reduces internal friction to maximize output and efficiency.

Specifications :

PX200/KKAAA/TNU/TF/KTV

General Features :

Flow Rate : 212 LPM (56 GPM)
Maximum Pressure : 8.6 BAR (125 PSIG)
Maximum Suction Lift Capability : 5.5 m (18.2′) Dry
Maximum Diameter Solids : 6.4 mm (1/4″)

Elastomer Options :

Material Temperature Limits :
Buna-N : -12.2 (+10) to +65.6 (+150) C (F)
Neoprene : -17.8 (+0) to +93.3 (+200) C (F)
EPDM : -51.1 (-60) to +137.8 (+280) C (F)
Polyurethane : -12.2 (+10) to +65.6 (+150) C (F)
Saniflex : -28.9 (+20) to +104.4 (+220) C (F)
PTFE : +4.4 (+40) to +104.4 (+220) C (F)
Viton : -40 (-40) to +176.7 (+350) C (F)
Wil-Flex : -40 (-40) to +107.2 (+225) C (F)
