LMI AD216-915SI

Manufacturer: LMI
Reference: AD216-915SI
Condition: New
Weight/ Dim Weight: 10.00 lb

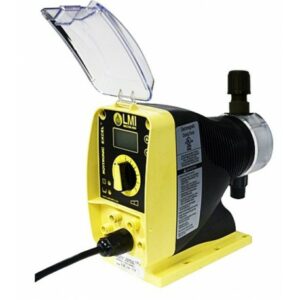

LMI Roytronic Excel Series AD pumps achieve a new level of innovation in solenoid-driven metering pump technology. Offering a robust design, micropressor control options and improved electro-magnetics to meet all flow/pressure ratings, ROYTRONIC EXCEL™ Series AD chemical metering pumps will provide industry solutions for more versatile chemical injection with greater turn-down capability.

Features & Specifications:

Control: Dual Manual Control
Output Code with FastPrime™ Liquid End: Max Capacity : 0.21 GPH (0.8 l/h)
Output Code with FastPrime™ Liquid End: Max Pressure : 250 psi (17.2 Bar)
Voltage: 220-240V Aust/NZ Plug
Liquifram Size: 0.2 in2
Head/Valve Code: FastPrime Head + 4FV
Connection: Inch Tube connections with tubing
Head/Fittings: PP/PP
Balls: Ceramic
Liquifram: Fluorofilm
Seat/O-Ring: PTFE
Accs. Valve: 4FV
Tubing & Connections Discharge & Suction: PE 1/4″ O.D.
Push button controls
LCD user interface
Durable and lockable clear cover
Theoretical flow rate display
NEMA 4X/IP-65 enclosure
Industrial grade IP-68 external signal/equipment interface
Selectable alarms (9 Series)
Backlit graphical display (9 Series)
Separate pulse/4-20 mA input and output connections (9 Series)
Internal/External mode indicated with a wired output (9 Series)
3-year Warranty
UL, CUL, NSF 50, 372, 61, CE Certifications
