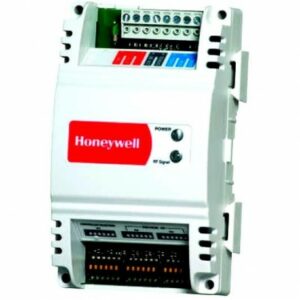

Honeywell WRECVR

Receiver Only for wireless temp sensor kit

Overview :

The WRECVR receiver and TR21-WS, TR23-WS, TR21-WK, and TR23-WK sensors are a family of wireless wall modules and receivers.

Features :

Wall module to Receiver (point to point) wireless kits can replace any standard wired sensor
Wireless Kits (wall module and receiver) are pre bound at the factory for quick installation
Signal Strength LED built into the wall module
Low battery indication
Optional dip switches available to bind any wall module to any receiver

Product Specifications :

Application: Wireless Receiver
Dimensions (in.): 5 1/2 in. high x 3 13/64 in. wide x 2 13/64 in. deep
Dimensions (mm): 140 mm high x 81 mm wide x 56 mm deep
Used With: TR21-WS, TR23-WS
Approvals, Underwriters Laboratories Inc.: UL94-5VA
Operating Humidity Range (% RH): 5 to 95% RH, non-condensing
Voltage: Receiver –20-30 Vac/dc, 50/60Hz; 24 Vac typical
Operating Temperature Range (F): -40 to +150F
Operating Temperature Range (C): -40 to + 65.5C
Shipping and Storage Temperature Range (F): -40 F to +150 F
Shipping and Storage Temperature Range (C): -40 to + 65.5C
