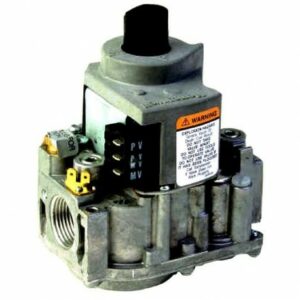

Honeywell VR8245M2530

Universal 24 Vac, Standard Opening, Intermittent / Direct Ignition Gas Valve 1/2 x 1/2″. Set 3.5″ WC

Overview :

Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 Vac, gas-fired appliances, with capacities from 20 to 200 cfh (VR8245M) or 30 to 415 cfh (VR8345M).

Features :

Control includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter.
Replaces many IP, HSI, or DSI gas control.
For use with natural or manufactured gas or LP gas.
Includes converter kit to adapt from natural to LP gas.
Compact size.
All adjustments and wiring connections accessible from top of control.
Four-inch swing radius allows easy rotation into position inside the tightest furnace vestibules.
Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper.
Internal inlet screen blocks contaminants in gas line from entering valve.

Product Specifications :

Application: Single Stage
Dimensions (in.): 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep
Dimensions (mm): 135 mm high x 104 mm wide x 69 mm deep
Frequency: 50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.: UL Component Recognized MCCZ2.MH5323
Voltage: 24 Vac
Operating Temperature Range (F): -40 F to +175 F
Operating Temperature Range (C): -40 C to +79 C
Approvals, Canadian Standards Association: CSA International: 112395
Includes: Natural to LP Conversion Kit; One 1/2″ x 3/8″ reducer bushing
