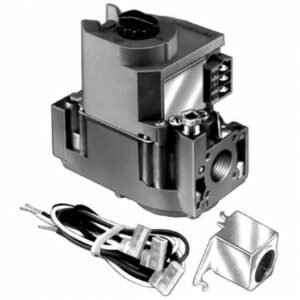

Single-stage, 120Vac, Standard Opening, Intermittent Pilot Gas Valve. 3/4 x 3/4″. Set 3.5″ WC
Overview :
Combination gas control for use in 120 Vac, gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh.
Features :
Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment.
Use with S86F,H; S860D; S8600F,H; S8610 and S90A,B Control Modules.
Compact size.
Provide two automatic valves.
Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
Meet codes requiring dual safety shutoff.
Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
All adjustments, wiring connections and pilot outlet are accessible from top of control.
Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
Compatible with ECO connector.
ON-OFF lighting sequence.
Product Specifications :
Application: Single Stage
Dimensions (in.): 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep
Dimensions (mm): 135 mm high x 104 mm wide x 69 mm deep
Frequency: 60 Hz
Approvals, Underwriters Laboratories Inc.: UL Component Recognized MCCZ2.MH5323
Voltage: 120 Vac
Operating Temperature Range (F): -40 F to +175 F
Operating Temperature Range (C): -40 C to +79 C
Approvals, Canadian Standards Association: CSA International: 112395
Includes: Two 3/4 x 1/2 in. reducer bushings; Natural to LP Conversion Kit; One 1/2″ x 3/8″ reducer bushing
