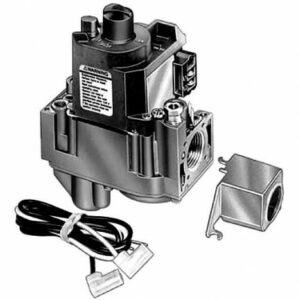

Honeywell VR4300A4502

Single-stage, 120Vac, Standard Opening, Standing Pilot Gas Valve. 3/4 x 3/4″. Set 3.5″ WC

Overview :

Combination gas control for use in 120 Vac, gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.

Features :

Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment.
Compact size.
Provides two automatic valves.
Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends.
Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
Meets codes requiring dual safety shut-off.
Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
All adjustments, wiring connections and pilot outlet are accessible from top of control.
Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
Compatible with ECO connector.
LITE-RITE (OFF-PILOT-ON) lighting sequence.

Product Specifications :

Application: Single Stage
Dimensions (in.): 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep
Dimensions (mm): 135 mm high x 104 mm wide x 69 mm deep
Frequency: 60 Hz
Approvals, Underwriters Laboratories Inc.: UL Component Recognized MCCZ2.MH5323
Voltage: 120 Vac
Operating Temperature Range (F): 0 F to 175 F
Operating Temperature Range (C): -18 C to +79 C
Approvals, Canadian Standards Association: CSA International: 112395
Includes: Conversion kit
