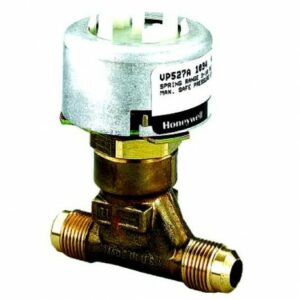

Honeywell VP527A1018

Two-way, unitary water valve with 1/2 in.O.D. and 0.63 Cv capacity

Overview :

Normally open, single-seated, high pressure valve, provides proportional control of hot/cold water in air conditioner and fan coil units. Replacement devices are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell devices.

Features :

Small size permits installation where space is limited.
Forged brass, straight-through body with end connections threaded for 45 degrees SAE flare fitting nuts.
Spring-loaded, self-adjusting, Buna-N “V”-ring packing is replaceable without shutting system down.
High-temperature rolling diaphragm actuator (aluminum cover) and high-temperature plastic diaphragm retaining cup with integral air connection for 1/4 in. (6 mm) O.D. plastic tubing.
Integral seat and brass plug with removable composition disc provides equal percentage flow.
Stainless steel stem, 3/16 in. (5 mm) diameter.

Product Specifications :

Dimensions (in.): 4 1/8 in. high x 3 1/8 in. wide
Dimensions (mm): 105 mm high x 79 mm wide
Operating Humidity Range (% RH): 5 to 95% RH
