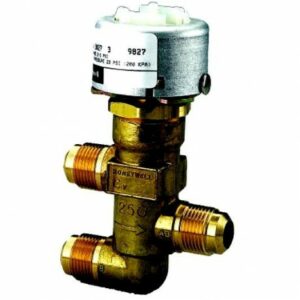

Honeywell VP526A1027

Three-way mixing, unitary water valve with 5/8 in. O.D. and 1.6 Cv capacity

Overview :

Three-way pneumatic mixing valve provides proportional control of hot and/or cold water in unit air conditioners and fan coil systems. Replacement devices are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell devices.

Features :

Small size permits installation where space is limited.
Direct-acting, rolling diaphragm actuator with integral high temperature plastic air connector for 1/4 in. (6-mm) O.D. plastic tubing.
Spring loaded, self-adjusting Buna-N “V”-ring packing replaceable.
Brass seats (integral lower, removable upper) and contoured plug provide metal-to-metal seating.
Stainless steel stem.
Linear and constant total flow throughout full plug travel.

Product Specifications :

Dimensions (in.): 4 7/8 in. high x 3 1/8 in. wide
Dimensions (mm): 124 mm high x 79 mm wide
Operating Humidity Range (% RH): 5 to 95% RH
