Honeywell VFF3SW1YCR/M

Manufacturer: Honeywell
Reference: VFF3SW1YCR/M
UPC: 085267323857
Condition: New
Weight/ Dim Weight: 1.00 lb

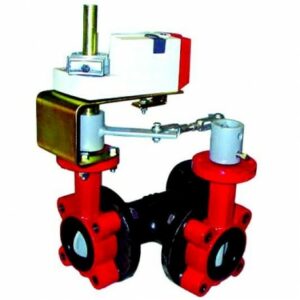

3-way (A-B-AB) 16in flange butterfly valve

Overview :

Resilient seat three-way valves provide control for HVAC system applications including chilled water, hot water, cooling tower water, and thermal storage systems.

Product Specifications :

Dimensions (in.): Assembly–Length: 44-15/16 in.; Height: 45-1/2 in.; Width: 26-5/16 in.; Neck: 14-3/4 in.; Radius; 11-5/16 in.
Dimensions (mm): Assembly–Length: 1140 mm; Height: 1157 mm; Width: 668 mm; Neck: 375 mm; Radius; 287 mm
Voltage: 24 Vac
Shipping and Storage Temperature Range (F): -40 F to 250 F
Shipping and Storage Temperature Range (C): -40 C to 121 C
Includes: Position indicator
