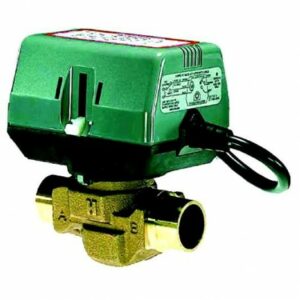

Honeywell VC6831AM1111

Overview :

Control central heating/cooling systems, fan coil systems, radiators and convectors. Depending on model, can be controlled by either a low or line voltage SPST/SPDT or floating controller such as a room thermostat, Aquastat control, or flow switch.

Features :

Two-way or three-way valves.
Minimal actuator power consumption.
Double insulated actuator.
Quick-connect or one-meter cable electrical connections available.
Quick and easy replacement of moving parts.
Actuator head installation does not require draining the system.
On/Off models with six second nominal timing (floating/modulating models available with 120 second timing).

Product Specifications :

Dimensions (in.): 4 7/16 in high x 2 3/4 in wide x 3 11/16 in long
Dimensions (mm): 113 mm high x 68 mm wide x 94 mm long
Frequency: 50 Hz; 60 Hz
Voltage: 24V; 6 VA, SPDT, or SP3T (tri-state) for proportional control.
Shipping and Storage Temperature Range (F): -40 F to +150 F
Shipping and Storage Temperature Range (C): -40 C to +65 C
