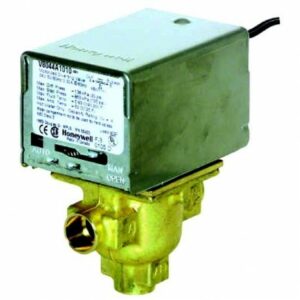

Honeywell V8044E1078

Overview :

On-off and diverting low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.

Features :

Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
All models may be installed without disassembling the valve.
Compact construction for easy installation.
Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
Actuator motor may be replaced without removing the valve body or draining the system.

Product Specifications :

Application: Hydronic Control
Frequency: 50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.: UL Listed: File MH11826
Operating Humidity Range (% RH): 5 to 95% relative humidity, non-condensing.
Voltage: 24 Vac; Power Consumption–7.7 VA
Approvals, Canadian Standards Association: CSA Certified: File 1322
Includes: With normally closed SPST end switch.
