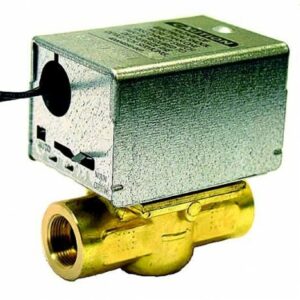

Honeywell V8043J1029

Overview :

On-off and two way low voltage valves consist of an actuator and valve assembly for controlling the flow of low pressure steam.

Features :

All models may be installed without disassembling the valve.
Compact construction for easy installation.
Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
Actuator motor may be replaced without removing the valve body or draining the system.
Suitable for use 15 psi low pressure steam application.

Product Specifications :

Application: Steam (low pressure) Control
Dimensions (in.): 4 in. high x 3 23/32 in. wide x 2 3/8 in. deep
Dimensions (mm): 102 mm high x 94 mm wide x 60 mm deep
Frequency: 50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.: UL Listed: File MH11826
Operating Humidity Range (% RH): 5 to 95% relative humidity, non-condensing.
Voltage: 24 Vac; Power Consumption–7.7 VA
