Honeywell V8043E1061

Overview :

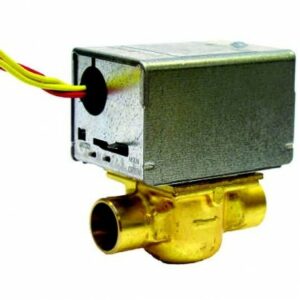

Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.

Features :

Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
All models may be installed without disassembling the valve.
Compact construction for easy installation.
Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
Actuator motor may be replaced without removing the valve body or draining the system.

Product Specifications :

Application: Hydronic Control
Dimensions (in.): 4 in. high x 3 1/2 in. wide x 2 3/8 in. deep
Dimensions (mm): 102 mm high x 89 mm wide x 60 mm deep
Frequency: 50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.: UL Listed: File MH11826
Operating Humidity Range (% RH): 5 to 95% relative humidity, non-condensing.
Voltage: 24 Vac; Power Consumption–7.7 VA
