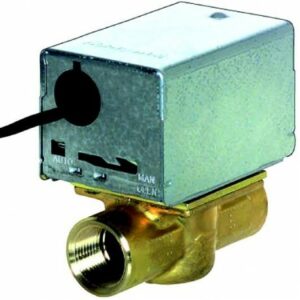

Honeywell V8043B1076

Overview :

On-off and two-way low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.

Features :

All models may be installed without disassembling the valve.
Compact construction for easy installation.
Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
Actuator motor may be replaced without removing the valve body or draining the system.
No Manual opener

Product Specifications :

Application: Hydronic Control
Dimensions (in.): 4 in. high x 3 23/32 in. wide x 2 3/8 in. deep
Dimensions (mm): 102 mm high x 94 mm wide x 60 mm deep
Frequency: 50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.: UL Listed: File MH11826
Operating Humidity Range (% RH): 5 to 95% relative humidity, non-condensing.
Voltage: 24 Vac; Power Consumption–7.7 VA
