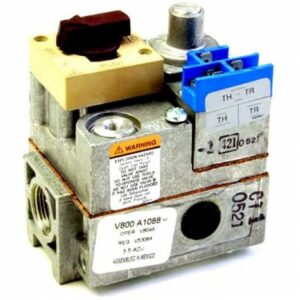

Honeywell V800A1161

24Vac, Standard Opening, Standing Pilot Gas Valve. 1/2 x 1/2″ Set 3.5″ WC.

Overview :

Used on gas fired standing pilot appliances with 30 mV thermocouple. These gas controls include a manual gas valve, safety shutoff, single millivoltage automatic operator, pressure regulator, pilot gas filter and flow adjustment, pressure tapping, and thermocouple connector.

Features :

Include pilot flow adjustment screw.
Easy to install, adjust and service; all adjustments and connections are accessible from top of control.
Add separate energy cutoff (ECO) where codes call for dual safety shutoff.
Complete safety shutoff on pilot flame failure.
LITE-RITE (OFF-PILOT-ON) lighting sequence.
ECO connector for V800 models. Part No. 392451-1.

Product Specifications :

Application: Single Stage
Dimensions (in.): 4 3/4 in high x 4 1/16 in. wide x 3 3/16 in. deep
Dimensions (mm): 121 mm high x 103 mm wide x 81 mm deep
Frequency: 60 Hz
Approvals, Underwriters Laboratories Inc.: UL Component Recognized MCCZ2.MH5323
Voltage: 24 Vac
Operating Temperature Range (F): 32 F to 175 F
Operating Temperature Range (C): 0 C to 79 C
Approvals, Canadian Standards Association: CSA International: 112395
