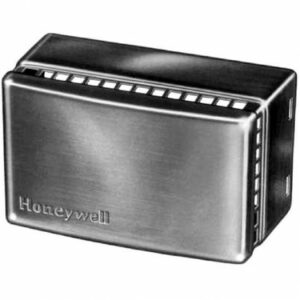

Honeywell TP974A2000

Vertical or horizontal mounting, bimetal pneumatic 110 F temperature sensor

Overview :

One- or two-pipe direct-acting temperature sensor used with RP908/RP920 Controllers to provide proportional control of pneumatic valve and damper actuators.

Features :

Plug-in air connections.
High efficiency air filter.
Bimetal element.
Continuous temperature indication available by using receiver gage.

Product Specifications :

Application: Temperature Sensor
Dimensions (in.): 3 1/4 in. high x 2 in. wide x 1 5/8 in. deep
Dimensions (mm): 83 mm high x 51 mm wide x 41 mm deep
Operating Temperature Range (F): 110 F Maximum
Operating Temperature Range (C): 43 C Maximum
