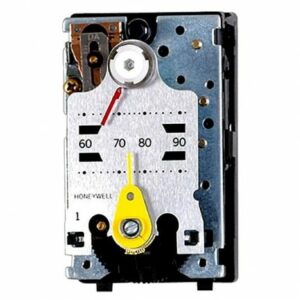

Honeywell TP972A2002

Pneumatic Thermostat Direct Acting Heating, Reverse Acting Cooling – Cover sold separately

Overview :

Two-pipe, one- or two-temperature, pneumatic thermostat gives proportional control of pneumatic valves & damper actuators. Replacement kits available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell two-pipe pneumatic thermostats.

Features :

Durable TP970 Series Thermostat. Pilot operated for high capacity.
Two-temperature energy conservation model available.
Adapter plate in Convertastat kits covers existing thermostat wall mark.
Backplate has molded air connections-no separate fittings needed.
Universal locking cover with satin chrome finish and horizontal, vertical, or blank window options with Tradeline model-other covers available.

Product Specifications :

Application: Wall Thermostat, Heat/Cool Operation
Dimensions (in.): 3 1/4 in. high x 2 in. wide x 1 5/8 in. deep
Dimensions (mm): 83 mm high x 51 mm wide x 41 mm deep
Setpoint Temperature Range (F): 59 F to 90 F
Shipping and Storage Temperature Range (F): 150 F maximum
Shipping and Storage Temperature Range (C): 66 C maximum
Includes: Order Cover Separately
