Honeywell T775-SENS-STRAP

Overview :

A family of general use, simple to use, broadly featured electronic temperature and universal controllers for use in HVAC, agricultural, and industrial applications.

Features :

Use the T775-SENS-OAT to measure outside air temperature.
Some typical applications for the 50021579-001 and T775-SENSWT/WR sensors include monitoring return air, discharge air, and mixed air temperatures:
Sensors have fast response time and highly accurate
Sensors have 1/2 in. (6.35 mm) stainless steel probe with a thermally conductive epoxy
Sensors are 1,097 Ohms PTC at 77F (25C)
The 50021579-001 is a standard temperature sensor for indoor applications
The T775-SENS-WR is a water resistant sensor with 5 ft leads
The T775-SENS-WT is a water tight sensor with 6 ft leads
The T775-SENS-OAT is for sensing outdoor air temperature and is housed in a weatherproof case for outdoor use (knockouts allow for 1/2 in. conduit connection)
Two year warranty

Product Specifications :

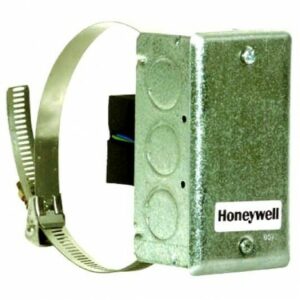

Application: Hot or chilled water (strap on)
Dimensions (in.): 4 3/16 in. high x 2 5/16 in. wide x 1 11/16 in. deep
Dimensions (mm): 107 mm high x 59 mm wide x 43 mm deep
Used With: T775 Series 2000
Operating Temperature Range (F): -40 F to +250 F
Operating Temperature Range (C): -40 C to +121 C
Shipping and Storage Temperature Range (F): -30 F to +160 F
Shipping and Storage Temperature Range (C): -34 C to +71 C
