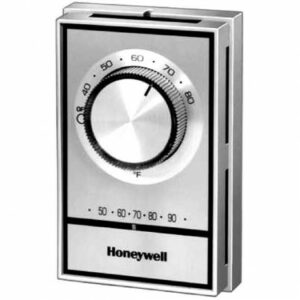

Honeywell T498A1778

Overview :

Electric Heat Thermostats provide line voltage control of electric heating systems.

Features :

Easy to install; color-coded leads.
Include thermometer. Include long-lasting Micro Switch mechanism; makes on temperature fall.
Rugged, plastic mounting base.
Mount on standard 2 x 4 in. outlet box or 4 x 4 in. junction box.
Select models include extra knob decal for recalibration, if necessary.

Product Specifications :

Application: Electric baseboards, convectors and fan forced heaters (resistive rated loads).
Dimensions (in.): 4 9/16 in. high x 2 7/8 in. wide x 1 15/16 in. deep
Dimensions (mm): 116 mm high x 73 mm wide x 33 mm deep
Frequency: 60 Hz
Approvals, Underwriters Laboratories Inc.: Listed; File No. E4436, Guide No. XAPX
Approvals, Canadian Standards Association: Listed: File No. LR1322
Includes: Range stops, locking cover and extra knob decal for recalibration
