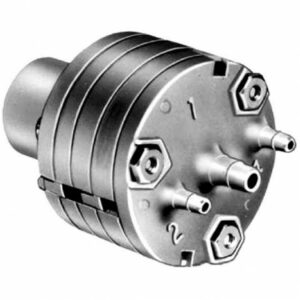

Honeywell RP972A1006

Overview :

RP972 is a modulating relay suitable for all types of heating and air conditioning control systems, to reverse and increase the capacity of branchline pressure to an element. The output varies inversely with the input with an adjustable offset.

Features :

Reverse acting.
In-line mounting or can be wall or panel mounted with mounting clip provided.
Molded plastic construction with neoprene diaphragms.

Product Specifications :

Application: Pneumatic Reversing Relay
Dimensions (in.): 1 1/2 in. diameter x 2 1/4 in. deep
Dimensions (mm): 38 mm diameter x 57 mm deep
Operating Humidity Range (% RH): 5 to 95% RH
Includes: 14003030-001, 1 1/2 in. Mounting Clip for Mounting relay to wall or panel
