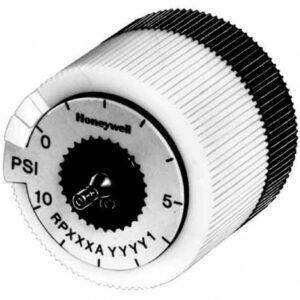

Honeywell RP971A1031

Wall, In-Line or panel mounted Pneumatic Four Port Ratio Relay

Overview :

Pneumatic relay produces a modulating pressure output, and controls pneumatic valve or damper actuators in sequence from a single thermostat. Replacements are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell devices.

Features :

Adjustable pilot start point pressures.
Two pilot pressure spans available.
Four sharp-barb air connections.
Molded plastic construction with neoprene.
Mounting clip provided.

Product Specifications :

Application: Pneumatic, Four Port Ratio Relay
Dimensions (in.): 2 in. diameter x 2 5/8 in. deep
Dimensions (mm): 52 mm dia. x 67 mm deep
Operating Humidity Range (% RH): 5 to 95% RH
Includes: 14003030-002 Mounting Clip and scaleplate with kPa markings
Pressure Range (psi): Output Span–3 to 13 psi
Pressure Range (kPa): Output Span–21 to 90 kPa
