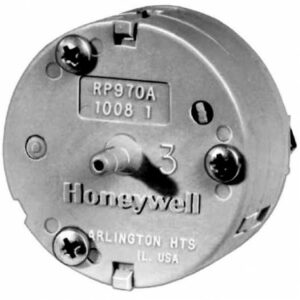

Honeywell RP970A1008

Wall, In-Line or panel mounted Pneumatic Capacity Relay

Overview :

Direct acting, modulating relay provides increased capacity of the branchline pressure to the final control device. Replacement devices are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell devices.

Features :

In-line, wall, or panel mounted.
Sharp-barb air connections.
Molded plastic construction with neoprene diaphragms.
Mounting clip provided.

Product Specifications :

Application: Pneumatic Capacity Relay
Dimensions (in.): 1 1/2 in. diameter, 1 1/2 in. deep
Dimensions (mm): 38 mm dia., 38 mm deep
Operating Humidity Range (% RH): 5 to 95% RH
Includes: 14003030-001, 1 1/2 in. Mounting Clip for Mounting relay to wall or panel
Pressure Range (psi): Input Operating–0 to 20 psi
Pressure Range (kPa): Input Operating–0 to 138 kPa
