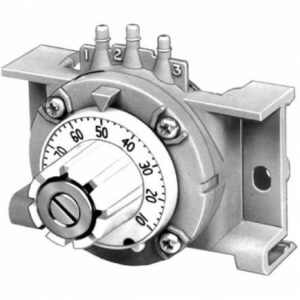

Honeywell RP922A1007

Wall, Snap onto DIN rail or panel mounted Pneumatic Averaging / Ratio Relay

Overview :

A three-port pneumatic potentiometer can sum and average two input pressures, be a flow restriction, or be an adjustable pressure supply. Replacement devices are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell devices.

Features :

High efficiency integral filters for all ports.
High reliability, no internal moving parts.
Compact size.
High accuracy.

Product Specifications :

Application: Pneumatic Averaging / Ratio Relay
Dimensions (in.): 2 7/16 in. wide x 1 5/8 in. deep x 2 7/8 in. high
Dimensions (mm): 62 mm wide x 42 mm deep x 73 mm high
Operating Humidity Range (% RH): 5 to 95% RH
