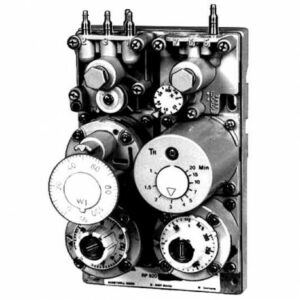

Honeywell RP920B1056

Overview :

High capacity, single/dual input pneumatic controller, used in conjunction with remote sensors, to provide proportional (P) or proportional plus integral (P+I) control of temperature, humidity, pressure, or dewpoint for heating and air conditioning.

Features :

Proportional plus integral control option minimizes offset.
Miniature diaphragm technology provides high degree of accuracy and reliability.
Direct Acting models can be converted to Reverse Acting (RA) function in field.
Field adjustable compensation start point.
Local or remote setpoint field option. Integral action cut-off provides trouble-free automatic startup.
Transparent cover (optional) provides protection while allowing easy reading of settings and gages.
Corrosion resistant construction.

Product Specifications :

Application: Proportional pneumatic controller
Dimensions (in.): 5 7/8 in. high x 3 13/16 in. wide x 3 1/4 in. without cover x 3 3/8 in. deep with cover
Dimensions (mm): 148 mm high x 96 mm wide x 83 mm without cover x 86 mm deep with cover
Operating Humidity Range (% RH): 5 to 95% RH
Includes: Without remote control point adjustment capability.
