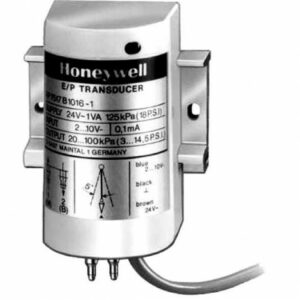

Honeywell RP7517B1016

Electronic Pneumatic Transducer

Overview :

Electronic-Pneumatic Transducers are used in electronic-pneumatic control systems to convert a proportional electric output signal from a controller into a direct-acting, proportional pneumatic signal.

Features :

Screw mounting or snap rail (models with cover).
Factory calibrated.
Dual barb fittings.
High accuracy.

Product Specifications :

Application: Electric to pneumatic Transducer
Dimensions (in.): 2 7/16 in. wide x 3 5/8 in. high x 2 in. deep
Dimensions (mm): 62 mm wide x 92 mm high x 52 mm deep
Operating Humidity Range (% RH): 5 to 95% RH
Voltage: 24 Vac external transformer
Includes: With cover, external transformer required, 24 Vac, 50/60 Hz, (3 wire)
Pressure Range (psi): 0 to 18 psi; Output–3 to 15 psi
Pressure Range (kPa): 0 to 125 kPa; Output–21 to 103 kPa
