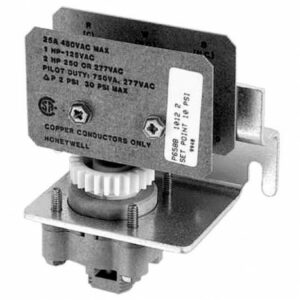

Honeywell P658B1012

Panel Mounted Pneumatic / Electric Switch. Factory Calibrated at 10 psi.

Overview :

Pneumatic-electric switches convert a controller’s pneumatic signal to electrical switching, providing start and stop control. Replacements available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell pneumatic/ electric switches.

Features :

Models available for surface or panel mounting.
Barb protected by open cage.
All ferrous parts plated to prevent corrosion.
Factory calibrated setpoint field adjustable to meet job requirements.
Neoprene diaphragm element.

Product Specifications :

Application: Pneumatic / Electric Switch
Dimensions (in.): 3 7/16 in. high x 3 1/4 in. wide x 1 3/4 in. deep
Dimensions (mm): 87 mm high x 83 mm wide x 44 mm deep
Frequency: 60 Hz
Approvals, Underwriters Laboratories Inc.: Category SDFY or SDFY2
Operating Humidity Range (% RH): 5 to 95% RH, 80 F (27C) max wet bulb
