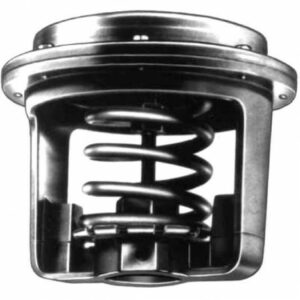

Honeywell MP953D1131

Valve Actuator, force: Med, 4 – 11 psi

Overview :

Pneumatic actuators provide proportional control of steam or hot or cold liquids in HVAC systems by operating V5011, V5013, and VGF valve assemblies. Replacement devices are available for older Honeywell actuators.

Features :

Rolling diaphragm for long life and low hysteresis.
Easily attached to valve.
Can be installed after piping valve.
Slide lock feature permits simple engagement to valve stem.
Direct- or reverse-action control.
Does not include positive positioner.

Product Specifications :

Dimensions (in.): 7 1/8 in. diameter x 5 5/8 in. high
Dimensions (mm): 181 mm diameter x 143 mm high
Used With: Valves with bonnet size 1-3/8 in. (35 mm)
Operating Humidity Range (% RH): 5 to 95% RH
