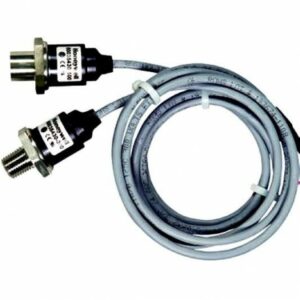

Honeywell MLH050PSCDJ1235

Overview :

The MLH Series is a two-wire 4-20mA gauge pressure sensor. This digitally compensated sensor offers an unparalleled value/performance combination, making it an ideal solution for demanding applications. Available in pressure ranges up to 1000 psi.

Features :

Available in 50, 150, 300, 500 and 1000 psi.
All metal wetted parts for use in wide variety of fluid applications.
Suitable for use with freon and ammonia based cooling systems.
No internal elastomeric seals mean no o-ring compatibility issues.
Less than 2 ms response time provides accurate, high speed measurement.
Select models available with 1/4-in. SAE female Schrader connection with valve depressor.

Product Specifications :

Voltage: 9.5Vdc to 30Vdc
Operating Temperature Range (F): -40 C to 125 C
Operating Temperature Range (C): -40 F to 257 F
Pressure Range (psi): 0-50 psig
