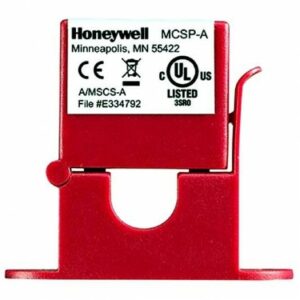

Honeywell MCSP-A

Overview :

All of these sensors have a solid-state output with an adjustable or fixed trip point (setpoint). These current switches should be used in applications in which a “Go/No Go” current switch is required. The current switches can be used to monitor devices with a maximum continuous operating current of up to 250 Amps. These current switches do not need to be externally powered, since the power for the switch is induced from the conductor being monitored. The split core switches are ideal for retrofit or existing installations, since it is not necessary to power down the unit and disconnect any wires during the installation process. Solid core switches are extremely easy to install, they are an excellent choice for new installations.

Features :

Solid or split core switches with fixed or adjustable trip points
Very low operating trip points
LED status indication
Integral DIN rail mounting flange
Accepts up to a 350 MCM (17.3 mm) cable
Operates up to 250 continuous amps
RoHS and WEEE Compliant
Limited 5 year warranty.

Product Specifications :

Application: Great for monitoring fans, pumps, motors, compressors, or other electrical equipment
Dimensions (in.): 2.356 in. high x 2.645 in. wide x 0.94 in. deep
Dimensions (mm): 60 mm high x 67 mm wide x 24 mm deep
Frequency: 50 H; 60 Hz
Approvals, Underwriters Laboratories Inc.: Approved
Operating Humidity Range (% RH): 0 to 95% RH, non-condensing
Operating Temperature Range (F): -22 to 140oF
Operating Temperature Range (C): -30 to 60oC
