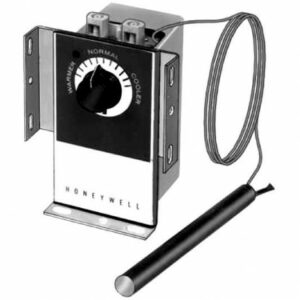

Honeywell LP916B1082

Overview :

Two-pipe, single temperature, unit mounted, remote bulb pneumatic thermostat used to provide proportional control of pneumatic valves and damper actuators in heating and air conditioning systems.

Features :

Liquid filled remote bulb.
Direct Acting (DA), Reverse Acting (RA) and Heating/Cooling (DA/RA) models are available.

Product Specifications :

Application: Induction and fan coil systems
Dimensions (in.): 4 3/4 in. high x 3 3/4 in. wide x 3 in. deep
Dimensions (mm): 121 mm high x 95 mm wide x 76 mm deep
Setpoint Temperature Range (C): 19 C to 30 C
Setpoint Temperature Range (F): 65 F to 85 F
Shipping and Storage Temperature Range (F): 150 F maximum
Shipping and Storage Temperature Range (C): 66 C maximum
Includes: Integral Mounting Bracket, (2) 316297-00021 Bulb Hangers and 304528A Bag Assembly (mounting hardware).
