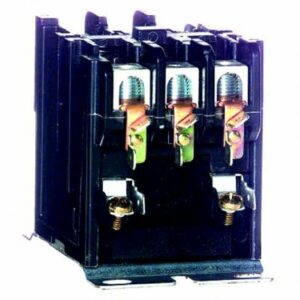

Honeywell DP3040C5001

Overview :

These three pole definite purpose electromagnetically operated contactors provide switching for starting of induction motors.

Features :

Shrouded coils on 3 pole (25A to 60A) models protect the coil from harsh environment factors.
Moisture proof epoxy is used to encapsulate the 3 pole 75A through 120A coils.
Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
Traditional design meets many needs.
Full array of replacement coils, contact sets and accessories available.

Product Specifications :

Application: PowerPro Definite Purpose Contactor
Dimensions (in.): 3.1 in. high x 3.62 in. wide x 2.4 in. deep
Dimensions (mm): 79 mm high x 92 mm wide x 61 mm deep
Frequency: 50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.: Component Recognized: File No. 14480, Guide No. NLDX2
Approvals, Canadian Standards Association: Certified: File No. LR6535
