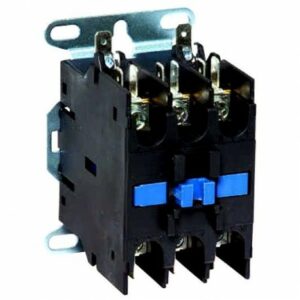

Honeywell DP3030C5002

Overview :

These three pole definite purpose electromagnetically operated contactors provide switching for starting of induction motors.

Features :

Meet the most demanding ARI requirement, ARI-780 Standard.
Class H high temperature insulated coils are standard on 3 pole contactors.
Shrouded coils on 3 pole (25A to 60A) models protect the coil from harsh environment factors.
Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
Full array of replacement coils, contact sets and accessories available.

Product Specifications :

Application: PowerPro Definite Purpose Contactor
Dimensions (in.): 3.1 in. high x 3.62 in. wide x 2.4 in. deep
Dimensions (mm): 79 mm high x 92 mm wide x 61 mm deep
Frequency: 50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.: Component Recognized: File No. 14480, Guide No. NLDX2
Approvals, Canadian Standards Association: Certified: File No. LR6535
