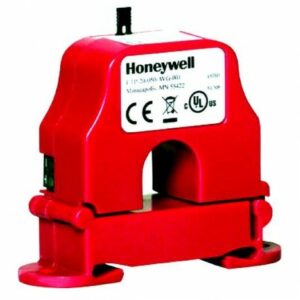

Honeywell CTP-20-050-VFD-001

Overview :

Depending on the model, current is converted into a linear and proportional output signal of 0-5 Vdc, 0-10 Vdc or 4-20 mA and monitored by a building management controller. Use these current sensors in load trending (current monitoring) applications.

Features :

Solid or split core loop-powered current transmitters for 4-20 mA models
Solid or split core 0-5 or 0-10 Vdc models
Fast response time
Integral DIN rail mounting flange
Easy wiring, polarity sensitive output
Accepts up to a 350 MCM (17.3 mm) cable
Operates up to 250 continuous amps
True RMS versions are available
RoHS and WEEE Complaint
Limited 5 Year Warranty

Product Specifications :

Application: Ideal for retrofit or existing installations requiring load trending (current monitoring)
Dimensions (in.): 2 45/64 in. high x 3 21/64 in. wide x 1 5/64 in. deep
Dimensions (mm): 69 mm high x 85 mm wide x 25 mm deep
Frequency: 30 Hz to 1 kHz
Approvals, Underwriters Laboratories Inc.: Approved
Operating Humidity Range (% RH): 0 to 95% RH, non-condensing
Operating Temperature Range (F): 5 F to 104 F
Operating Temperature Range (C): -15 C to 40 C
