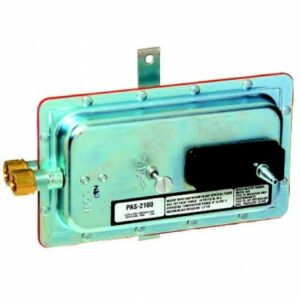

Honeywell CLEPAS2200

Pneumatic Airflow Differential Pressure Switch, High Setpoint Range

Overview :

Senses differential air pressure in HVAC systems and provides on/off output. A typical application is sensing fan shutdown in a unit ventilator to close the outdoor air damper.

Features :

Reliable pneumatic operation.
Adjustable setpoint (switching pressure).
Eliminates electrical interlock wiring.

Product Specifications :

Application: Pneumatic Airflow Differential Pressure Switch
Dimensions (in.): 6 1/8 in. high x 4 1/8 in. wide x 2 13/16 in. deep
Dimensions (mm): 156 mm high x 105 mm wide x 72 mm deep
Pressure Range (psi): Switching Pressure–0.15 to 12.0 in. w.c.
Pressure Range (kPa): Switching Pressure–0.037 to 2.99 kPa
