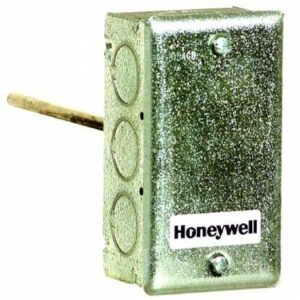

Honeywell C7041D2001

20K ohm NTC Temp Sensor, 5 in. insertion

Overview :

The C7041 Electronic Temperature Sensors are 20K ohm NTC sensors designed to be used with electronic controllers in domestic or commercial heating and cooling systems.

Features :

The C7041 series of electronic temperature sensors are designed for use with the Excel 10, Excel 15, or any controller requiring a 20K ohm NTC non-linearized sensor input.
Various models are available for sensing duct air temperature, averaging air temperature, water temperature, outdoor air temperature, or water pipe temperature.
All devices consist of a temperature sensitive element and leadwires enclosed for protection from physical damage.
Sensor element enclosures are made of various lengths and configurations for the specific applications.
All devices have a wiring box housing to enclose the field wiring connections. C7041F outdoor sensor design, made of aluminum and stainless steel, is waterproof, and includes a sunshield.

Product Specifications :

Application: Immersion sensor for hot or chilled water, purchase well 50001774-001 separately
Dimensions (in.): 4 3/16 in. high x 2 5/16 in. wide x 1 11/16 in. deep
Dimensions (mm): 107 mm high x 59 mm wide x 43 mm deep
Used With: Excel 10, 50, 80, 100, 500
Operating Temperature Range (F): -40 F to +250 F
Operating Temperature Range (C): -40 C to +121 C
Shipping and Storage Temperature Range (F): -30 F to +160 F
Shipping and Storage Temperature Range (C): -34 C to +71 C
