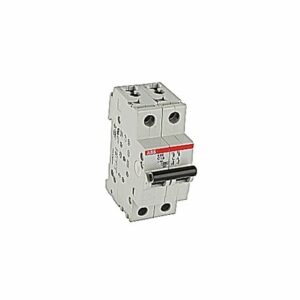

ABB S202-C1.6

Miniature Circuit Breaker, Supplementary Protector, Rated Current 1.6 Amps, 2 Pole, Interrupt Rating 6 kA, Thermal Magnetic Trip Curve C, Voltage up to 277/Y480 VAC, 60/110 VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 1077, CSA 22.2 No. 235

Specifications:

UNSPSC :39121603 Miniature circuit breakers
IGCC :4897 Miniature circuit breakers
Brand Name :ABB
Type :High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Special Features :DIN Rail Mounting, Finger Safe and Multi-Function Terminals
Application :Designed for Use with Medium Magnetic Start Up Currents; Example: Lighting, Control Panels
Standard :UL 1077, CSA 22.2 No. 235, IEC 60898
Voltage Rating :277/Y480 VAC, 60/110 VDC
Amperage Rating :1.6 Amps
Frequency Rating :50/60 Hertz
Trip Type :C
Interrupt Rating :6 kA
Number Of Poles :2
Auxiliary Contacts :Yes
Length :69 Millimeters
Width :35 Millimeters
Height :88 Millimeters
Operating Temperature :-25 to +55 Degrees Celcius
